Smart capacitor
Smart, comprehensive and sustainable reactive power compensation for low voltage power systems
Smart, comprehensive and sustainable reactive power compensation solution for low voltage power systems

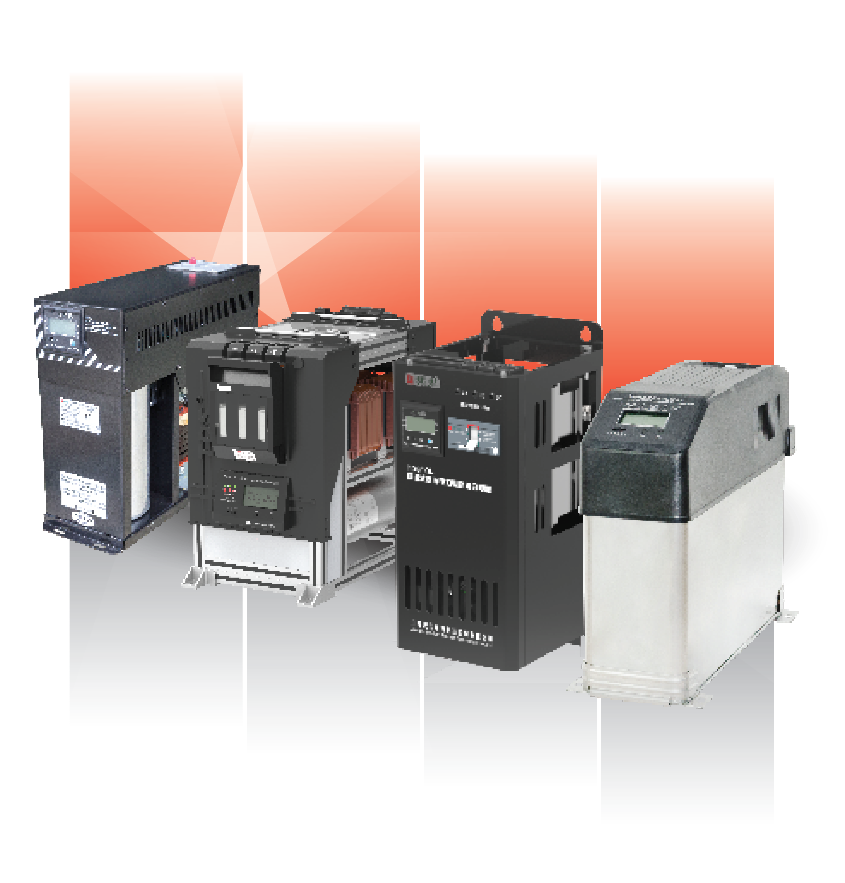

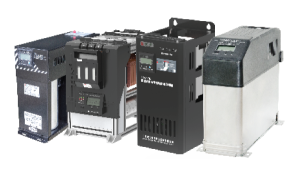

SmartCap is a smart, comprehensive and sustainable reactive power compensation solution for low voltage power systems. With nearly three decades of development history, SmartCap has proven its stable and reliable performance through many practical applications. Specially designed for modern power systems, SmartCap integrates advanced technology and outstanding performance, helping to:
- Optimizing Power Factor
- Improving Power Quality
- Minimizing Energy Losses
Features
Outstanding durability and reliability
- Zero-cross switching technology, current pulse suppression, grid oscillation reduction and contact life extension up to 1 million switching times
- Synchronous communication system, automatic diagnosis and real-time protection.
- Monitor capacitor temperature via analog signal and calculate operating time of each module; intelligent control algorithm helps optimize the life of the entire system.
- High-quality components – synchronous production at the same factory with a consistent quality management system.
Optimal performance
- Modular design – easy to install, expand or replace; optimize cabinet cost
- Real-time reactive power control, support 3-phase or split-phase compensation; reduce power loss, improve transformer and busbar system efficiency
- Compatible with both models: centralized compensation and distributed compensation
- Meets 3-phase common compensation structure, split-phase compensation
- Easy connection to remote monitoring system: BMS, SCADA
- Hệ thống truyền thông đồng bộ, tự động chẩn đoán và bảo vệ real-time.
System safety
- Multi-layer protection for each capacitor level
- Overvoltage, undervoltage protection
- Overcurrent, short circuit protection
- Inductor overheat protection, capacitor overheat protection (measurement, monitoring by analog signal)
- Over-harmonic protection
- Meets quality standards
- Fully type tested according to GB/T 15576-2020
- Complies with standards: 2014/35/EU, 2014/30/EU, EN 55011:2016+A11:2020, EN IEC 61000-6-2:2019, EN 50178:1997
- Meets quality and environmental management standards: ISO 9001, ISO 14001, OHSAS 18001
Deployment advantages
- SmartCap simplifies deployment and delivers long-term value for both engineering and operations.
- The adoption of SmartCap solutions helps customers:
- Reduce design and installation time
- Reduce maintenance costs and improve system availability
- Improve power quality, reduce the impact of harmonics
- Easily scale without changing the system design
- Ready to integrate into modern control systems
- Improve investment efficiency through sustainable design and operational savings
Selection guide
Assessment of harmonic pollution level of the system
- Modern power systems increasingly use nonlinear loads (inverters, LEDs, computers, etc.), generating harmonics. Harmonics directly affect the efficiency of reactive power compensation and the stability and reliability of the compensation system in a power disturbance environment. How to assess the level of harmonic pollution
- Based on the ratio of total nonlinear load capacity/power transformer capacity
- Harmonic index THDi, THDu
Select compensation configuration
- Centralized compensation: Applicable to systems with evenly distributed loads and short distances between loads
- Distributed compensation: Suitable for systems with many large individual loads and long distances from source to load
- Combined: Combining centralized and distributed compensation to optimize operating efficiency in complex systems.
Special options
- Use thyristor switching if the system requires fast response, instantaneous compensation
- Choose 14% reactor when the system has high 3rd harmonic ratio, to avoid resonance and protect capacitors
Smart capacitor products
TDS-1531
The TDS-1531 is a dedicated control device for low-voltage capacitor banks, fully integrating the functions of measuring, monitoring and analyzing…
